SKU: V10MZ4

Keychron V10 Max QMK/VIA Wireless Custom Mechanical Keyboard

Vendor Keychron
Regular price RM359.00
Sale price RM359.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Keychron V10 Max

The V10 Max is a premium, customizable mechanical keyboard that offers both 2.4 GHz wireless and Bluetooth 5.1 connectivity. With its 75% Alice layout, gasket mount construction, sound-absorbing foam, and double-shot PBT keycaps, it ensures a superior typing experience, delivering enhanced comfort and efficiency.

Choose the keycaps, switches and more accessories for your V10 Max.

2.4 GHz & Bluetooth Connection

Achieve optimal gaming performance with the 2.4 GHz wireless connection, featuring a swift 1000 Hz polling rate. For smooth multitasking between your computer, phone, and tablet, the V10 Max allows for easy connection to three devices via Bluetooth 5.1.

All-Around Customizable Keyboard

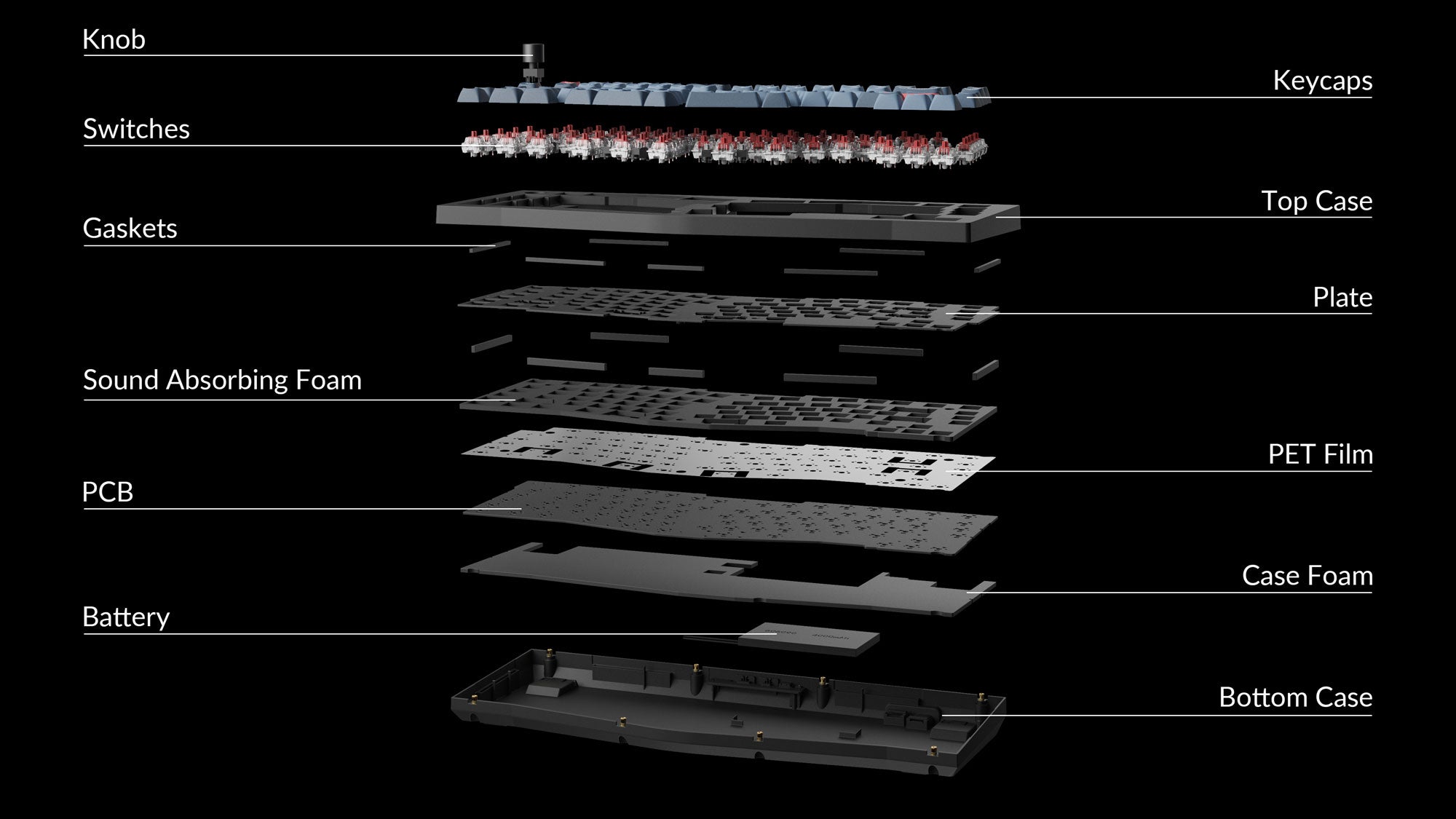

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Type-A-and-Type-C-receivers-for-the-V3-Max-wireless-mechanical-keyboard.jpg__PID:0eeb5747-5145-4fee-99ca-4721f668471a

Dual Receivers

For a better 2.4 GHz wireless experience, the V10 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Keychron-V10-Max-wireless-mechanical-keyboard22.jpg__PID:ca6f1a19-eee8-4d52-82d6-de00af97419d

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron-V10-Max-2.4G-wireless-QMK-mechanical-keyboard.jpg__PID:1426ca6f-1a19-4ee8-9d52-c2d6de00af97

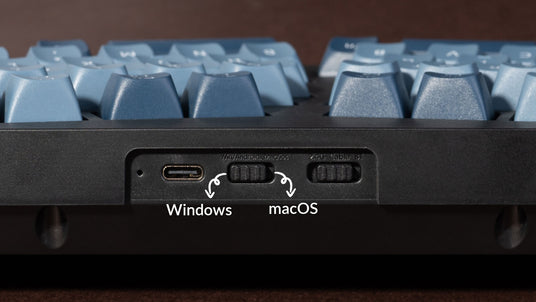

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V10 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

V1 Max gasket mount.gif__PID:78a8dcea-419c-4585-aea1-998b2400e25c

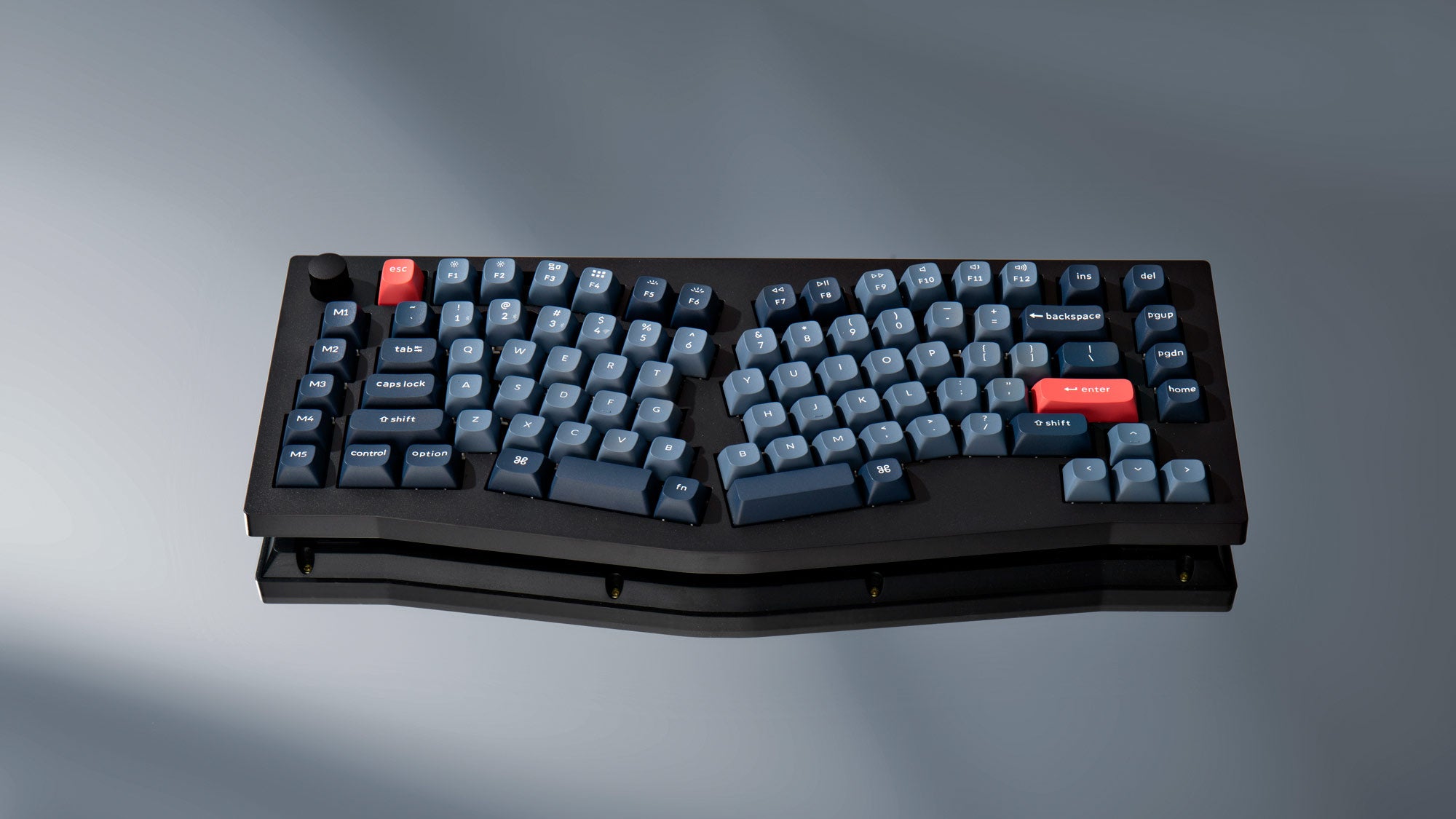

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V10 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Program V10 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.


Get the V10 Max keymap working on VIA

Since the VIA code for the V10 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V10 Max keymap working on VIA.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.


Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect. The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron Screw-in stabilizers.webp__PID:bd3a1142-7458-4d40-a937-12dff7ddae2a

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V10 Max also supports third-party screw-in PCB stabilizers.

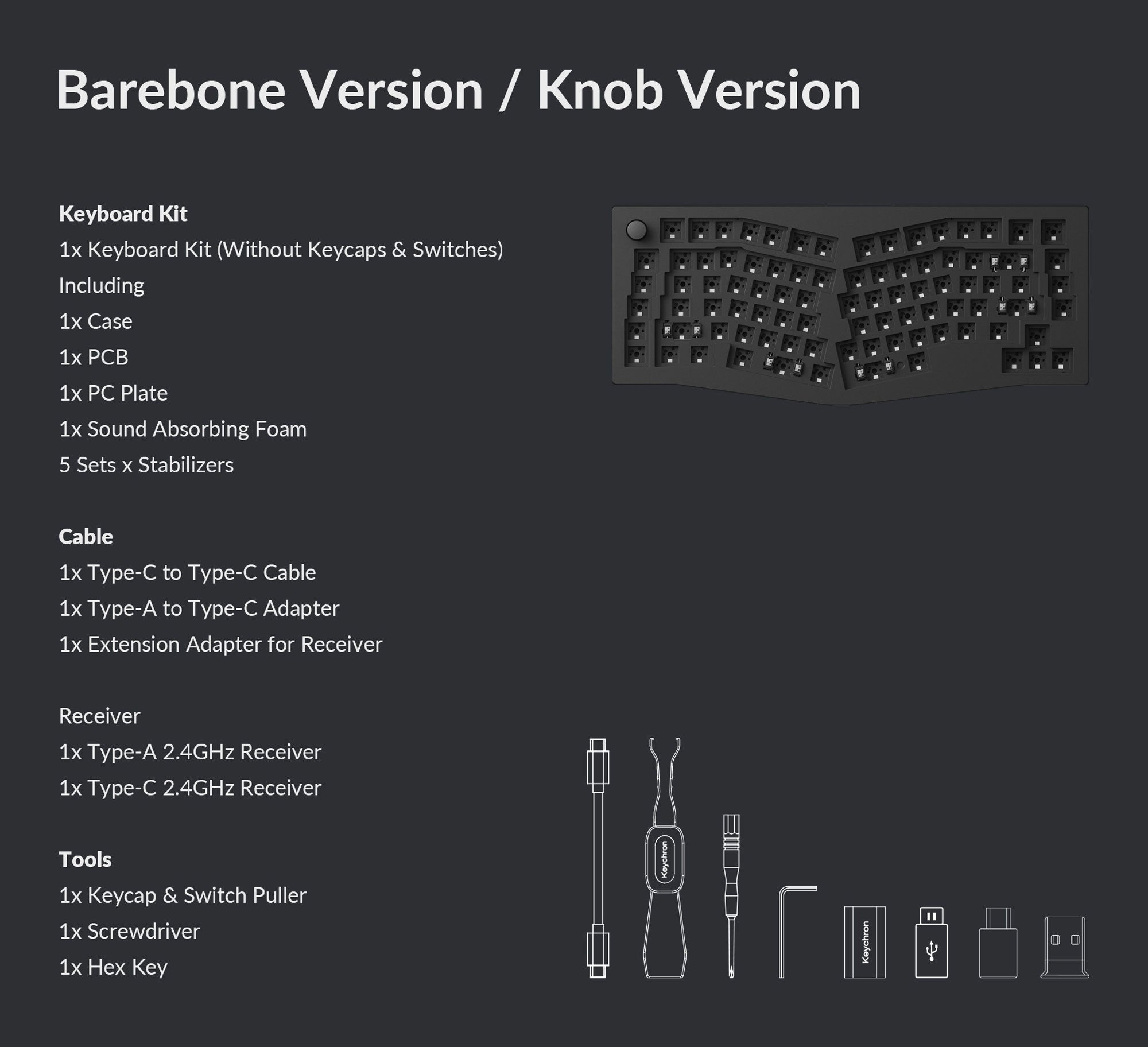

What's in the box?


Specs

  • Width: 146.5 / 163.5 mm

    Length: 389.6 mm

    Front Height: 18.7 mm  (without keycaps)

    Back Height: 27.2 mm (without keycaps)

    Feet Height: 3 mm

    Angle: 3.5° / 7.5° / 9.5°

    Weight:  958 ± 10 g (Fully Assembled Version)

    Body Material: ABS Plastic

    Plate Material: PC

    Polling Rate: 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)

    Mount Style: Gasket Mount Design

  • Battery: 4000 mAh Rechargeable li-polymer battery

    Wireless Working Time (Backlit off): Up to 225 hours (Lab test result may vary by actual use)

    Wireless Working Time (RGB): Up to 100 hours (Lowest brightness)

    Charging Time: Around 5 hours

    Bluetooth Version: 5.1

    Compatible System: Windows/macOS/Linux

    N-Key Rollover (NKRO): Yes for both wireless and wired modes

    Hot-swappable: Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.

  • Keycaps (Fully Assembled Version): Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)

    Switches: Gateron Jupiter (Fully Assembled Version)

    MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

    Backlight: South-facing RGB LED

    Stabilizer: Screw-in PCB stabs

    Charging Port: USB Type-C

    Cable: Type-C cable + Type-A to Type-C adapter

    Operating Environment: -10℃ to 50℃

    Bluetooth Device Name: Keychron V10 Max
