KBDFans Tiger Lite Gaming Hall Effect Venom Custom Mechanical Keyboard (Full Kit)

KBDFans Tiger Lite Gaming Keyboard

Build your own in the configurator here!

A low-cost, lightweight TKL layout board capable of handling both MX and HE PCBs to cater to both hardcore gamers and casual audiences The case is ABS injection molded and both PCB options (Tofix MX and Venom HE) are capable of smooth, reliable operation at 8000Hz to deliver some of the fastest response in the current keyboard market. A true no-frills, affordable yet high performance custom option.

NOTES

1. This is the FULL KIT for Tiger Lite Gaming which comes with the Case, PCB and Plate. If you looking to get the EXTRA PARTS can place order through here.
2. The Polycarbonate (PC) Plate is not compatible with the Venom HE PCB.
3. Switches and keycaps are not included in this keyboard kit.

How to assemble the daughterboard?

• Please test the PCB first before removing the daughterboard and connector.
• If the PCB works fine, please detach the USB interface (Part A), then detach the daughterboard (Part B), and connect it to the PCB with a JST cable.

Comparison

Venom HE PCB Version

• What includes:
  • ABS Plastic Top and Bottom case x1
  • FR4 plate x1
  • Venom TKL PCB x1
  • 3.5mm Plate foam x1
  • 0.1mm PET Switch pads x1
  • Silicone socks set x1
  • Cherry stabs kit x1
  • Stabilizer shims x1
  • USB-C cable x1
  • Rubber feet x1 set
  • Carrying case x1
  • T6 screw driver x1

• Web driver supported: Link

Layout

• Venom HE PCB Version

PCB

• Venom HE PCB Specs
  • Polling 8KHz Scan per key 8KHz

  • Magnetic pole N-pole

  • Support Gateron Ks20(jade), Geon Raw, Raptor (Can be mixed and can be added new switch)

  • Compatible with H87c and H87nu

  • Auto calibration

  • no dead-zone both top and bottom (Can be customized)

Plate

• FR4 Plate for Tofix 8K/Venom HE

Silicone Gasket Structure

Dimensions

• 7° Typing angle: Ergonomic Design

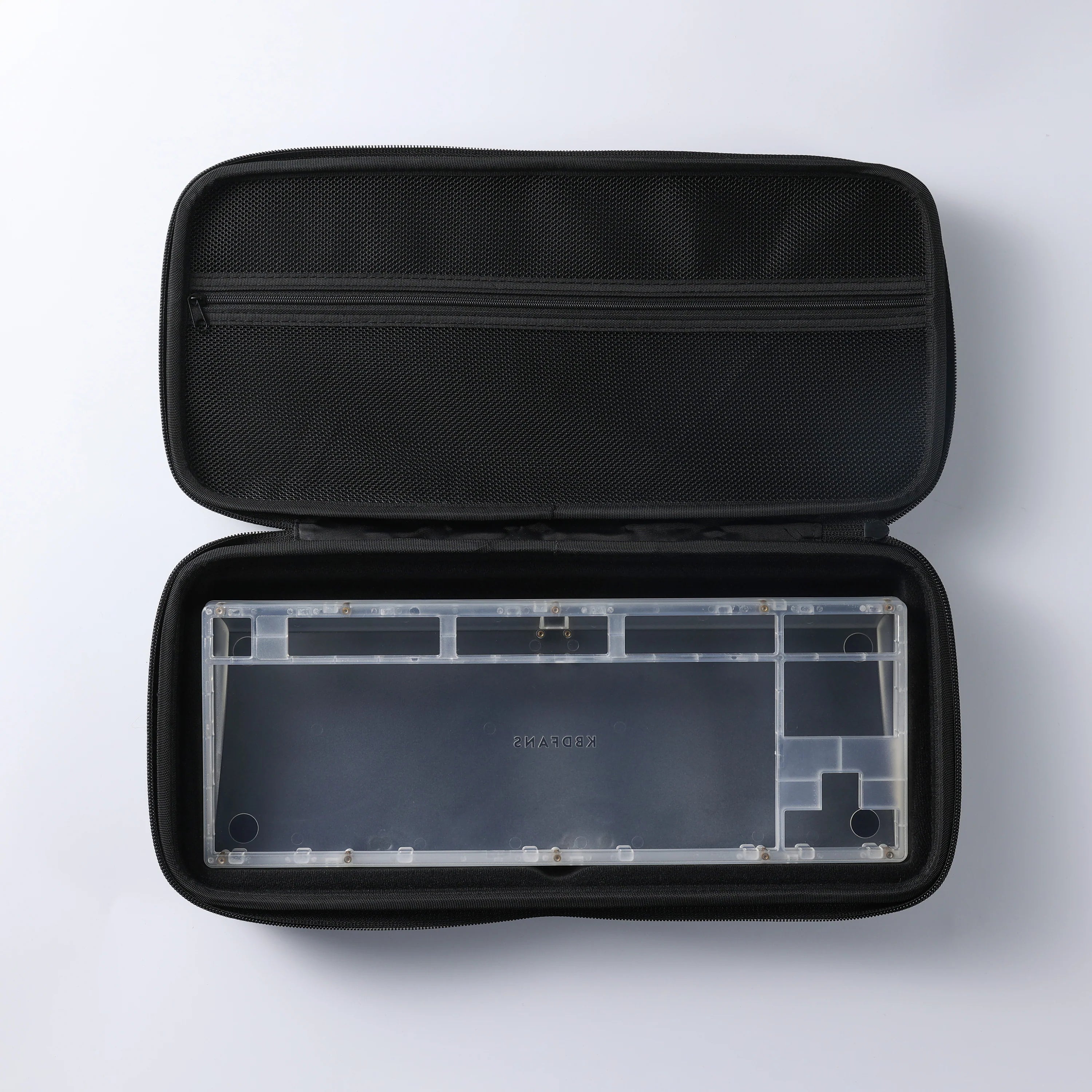

Carrying Case

What are includes:

• 1 ABS Plastic Top & Bottom Case

• 1 Plate
• 1 PCB (According to the purchased option)

  • Venom HE PCB
• 1 Foam Set
• 1 Set Silicone Sock Gaskets
• 1 Set Cherry Stabilizers
• 1 Set Stabilizer Shims
• 1 USB-C Cable
• 1 Accessory Set (Rubber Feet, Carrying Case, T6 Screwdriver)

All our orders are carefully processed from our physical store in Subang Jaya!

FREE SHIPPING *(Min. Spend RM150)
West Malaysia | Ninjavan - 2-4 Working Days
East Malaysia | Ninjavan - 3-6 Working Days

INTERNATIONAL
Singapore | Teleport - 2-4 Working Days
Rest of the World | DHL Express - 2-4 Working Days

Grab Express/Lalamove
Please mark the order as self-pickup and let us know the tracking.

Order Cut-Off Time: 6PM

Where are the Keycaps and Switches?

Barebones Kits come without Keycaps and Switches to allow you to choose how you want your board sounds and feels down to each individual key.

Need a starting point? Check out our recommendations in the Configurator!
