Eden

The Eden is the first project by our design studio, KAI. Featuring a complex and purposeful design designed around pcb-mounted tadpole, Gummy O-ring, and Top mounts in a 60% layout.

Build Guide (click here)

Disclaimers

• Eden plates are 7U bottom row ONLY.
• The patina copper weight included in this kit is hand-made, and the pattern is not consistent. Any disputes regarding the pattern received will not be entertained.

Specifications

Layout: 60%, WK (7U ONLY)
Mounting: Tadpole, Gummy O-Ring, Top
Materials: 6063 Aluminum (Case) Patina Copper
Typing Angle: 5 degrees
Weight built: 2.1kg
Compatible with H60 PCB outline and JST position
PCB Designed by YMDK

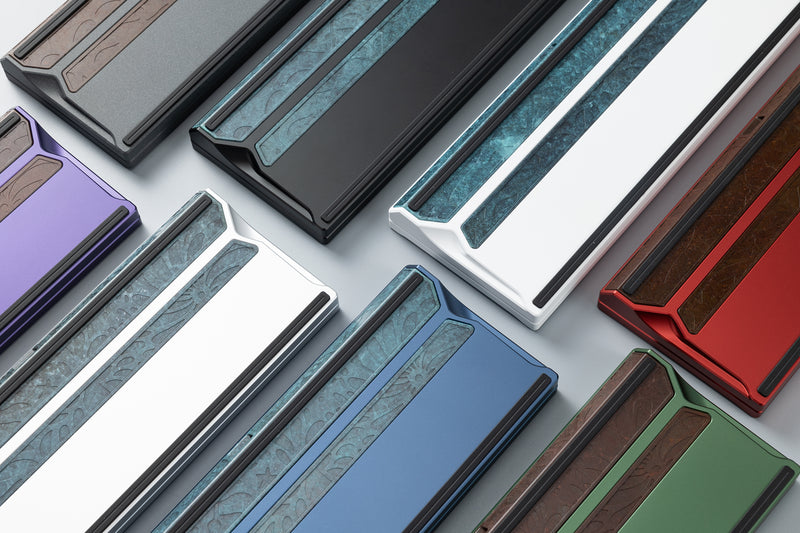

Colors:

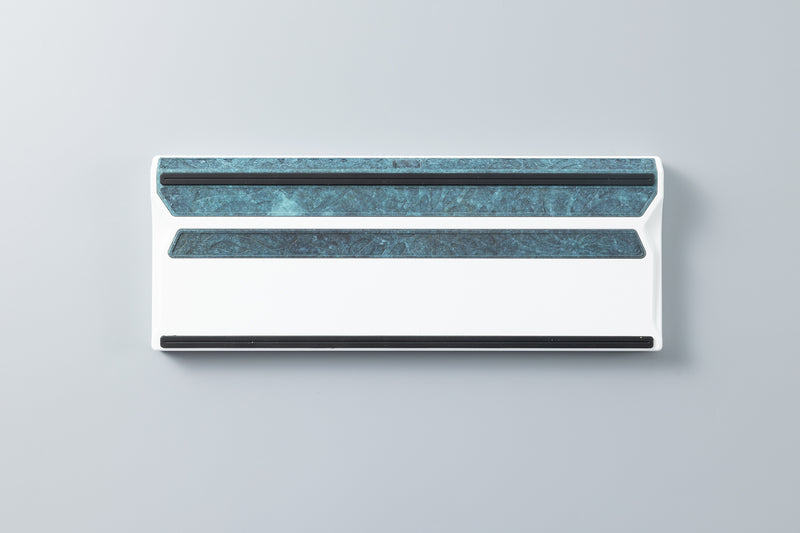

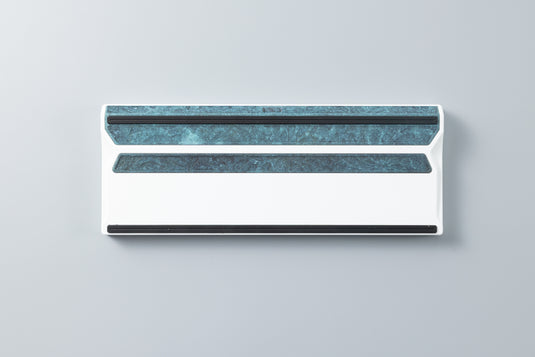

- E-Coated White w/ Blue Patina

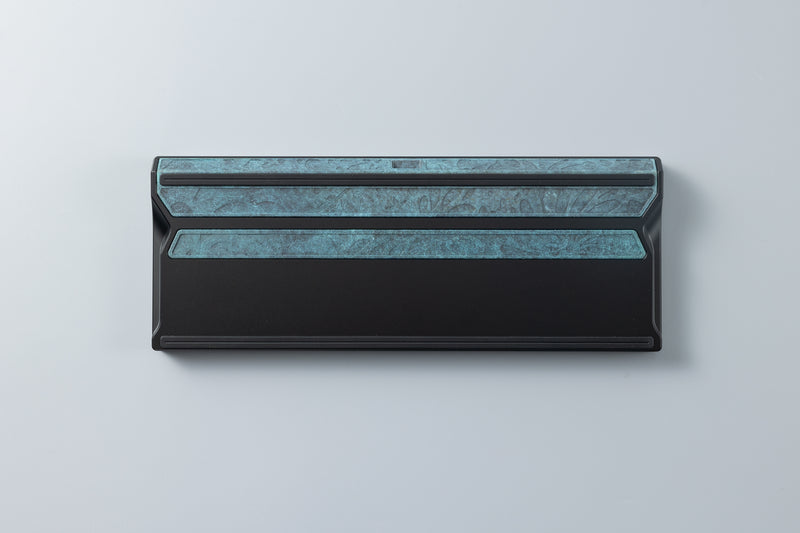

- Anodised Black w/ Blue Patina

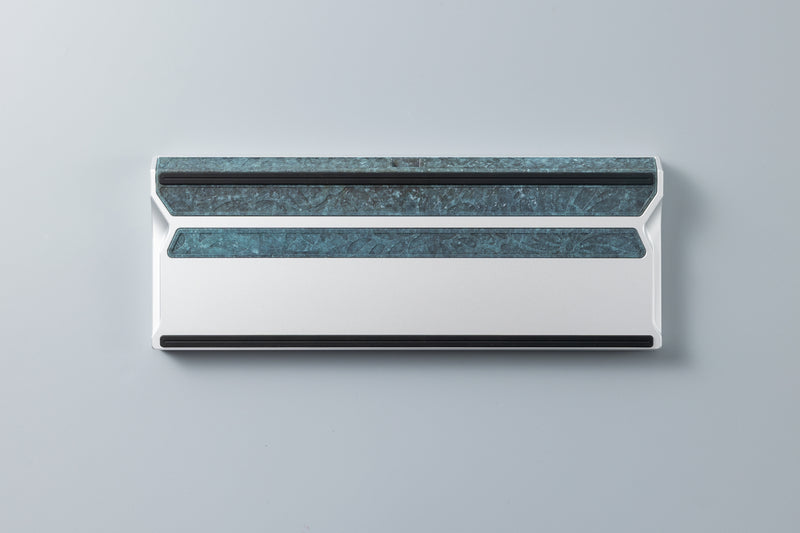

- Anodised Silver w/ Blue Patina

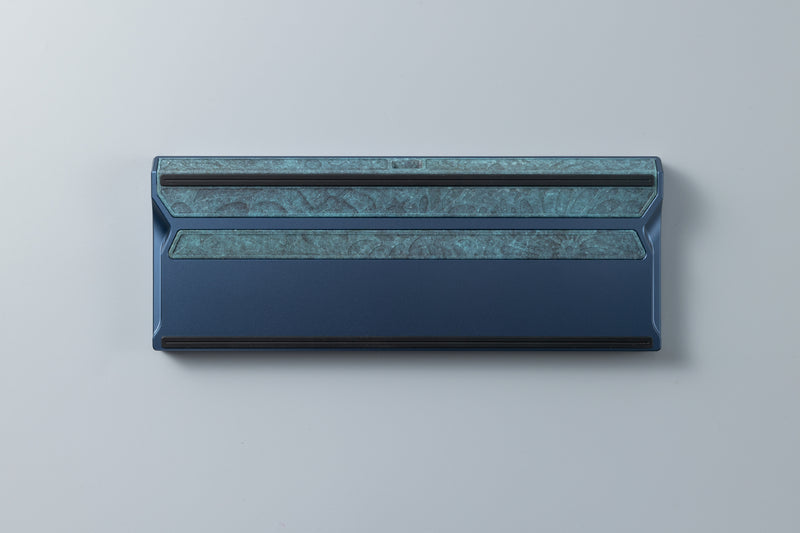

- Anodised Navy w/ Blue Patina

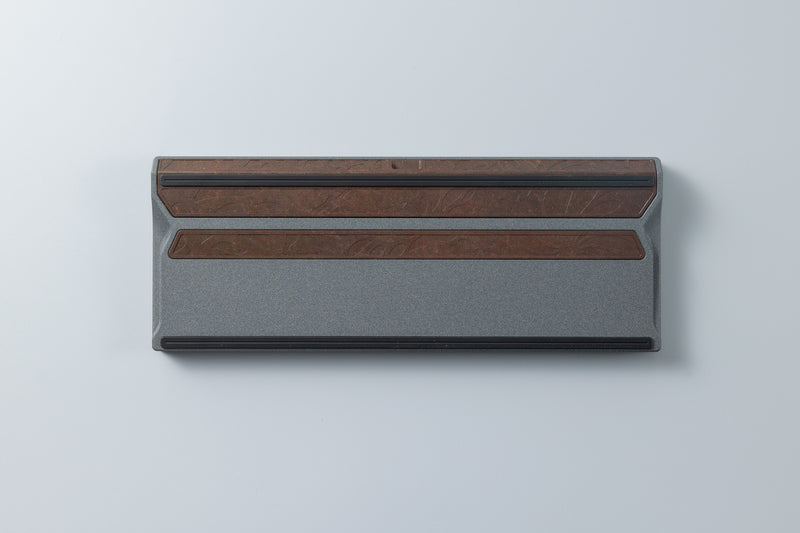

- Powder Coated Meteorite Grey w/ Brown Patina

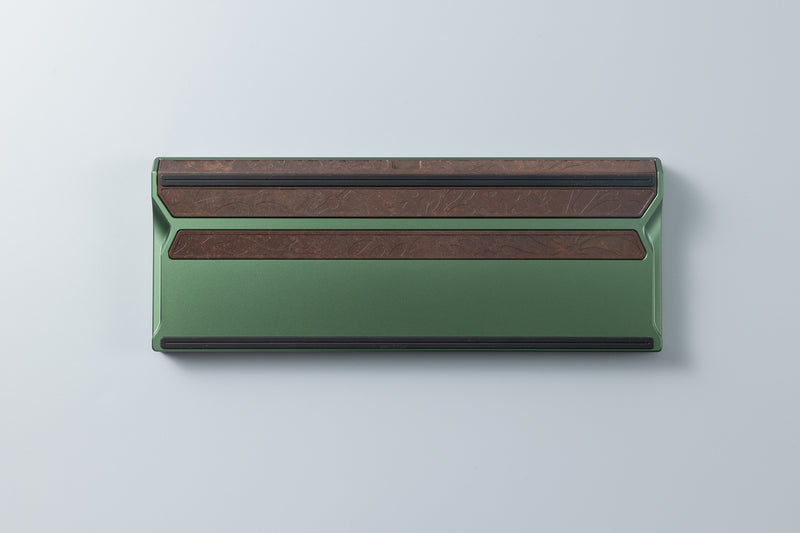

- Anodised Dark Green w/ Brown Patina

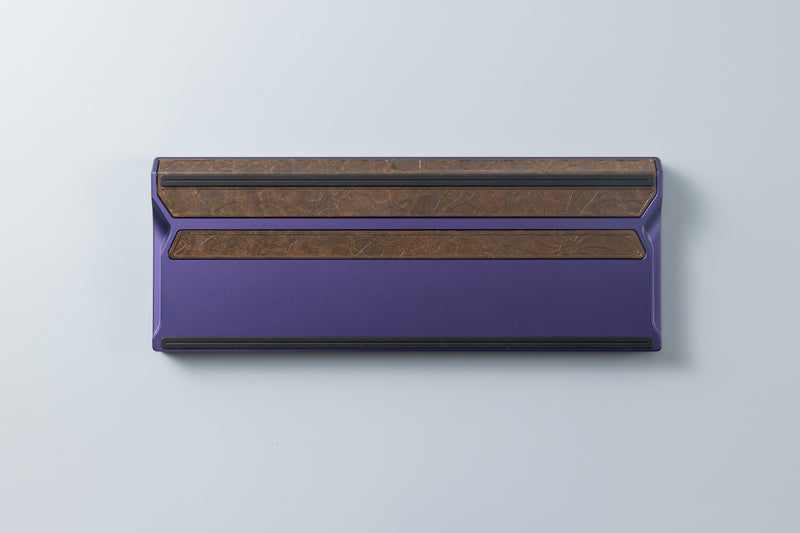

- Anodised Dark Purple w/ Brown Patina

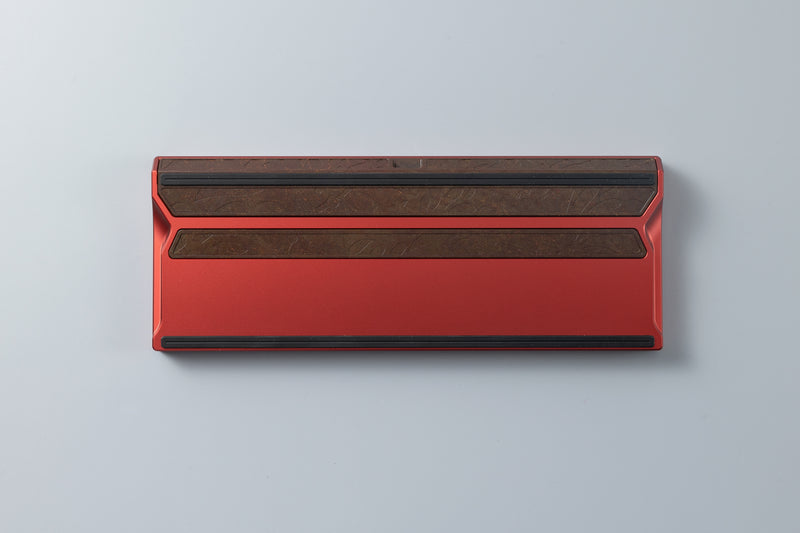

- Anodised Burgundy w/ Brown Patina

Package contents:

1. Eden x 1
2. Carrying Case
3. Hotswap PCB x 1
4. 50A Tadpoles x 8
5. Gummy O-Ring x 1
6. USB-C Daughter Board w/ Cablex 1
7. Geon Rubber Feet x 2
8. M2 x 8 Screws for top mount x 8
9. Screwdriver x1
10. Torx-T6 bit x1
11. Hex-2.5 bit x1
12. Philips-0 bit x1
