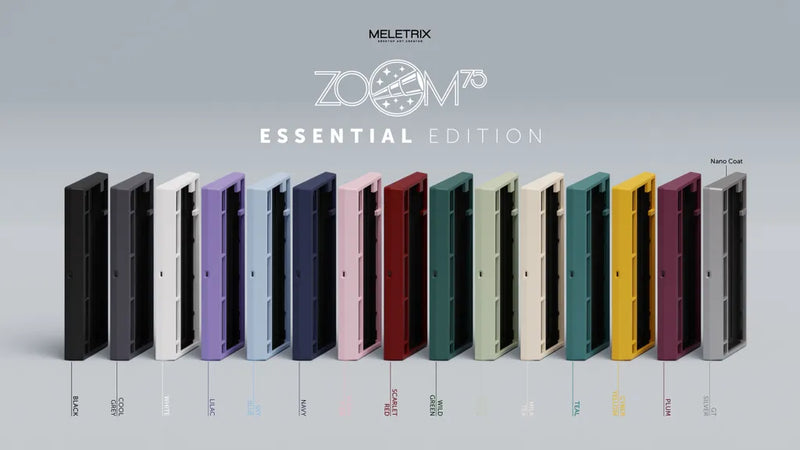

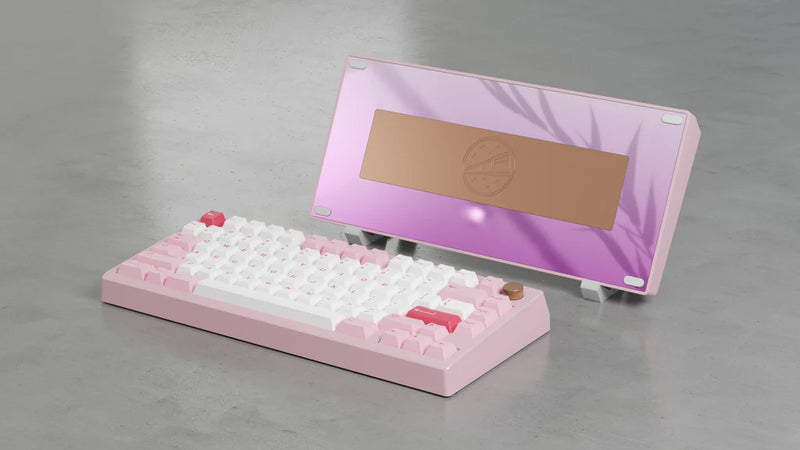

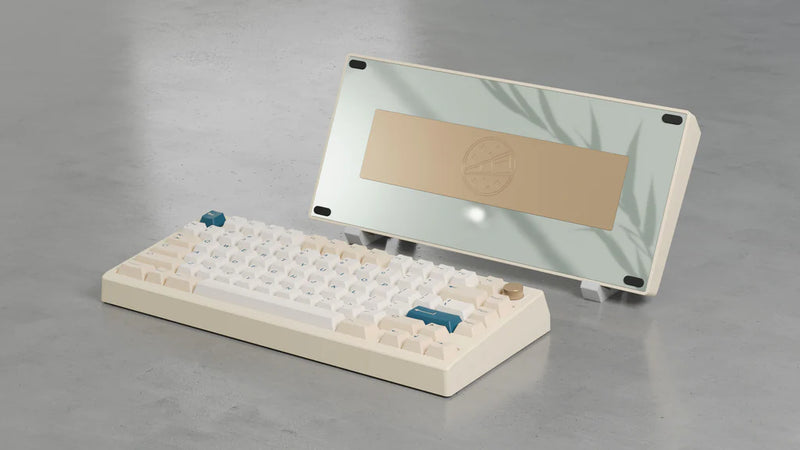

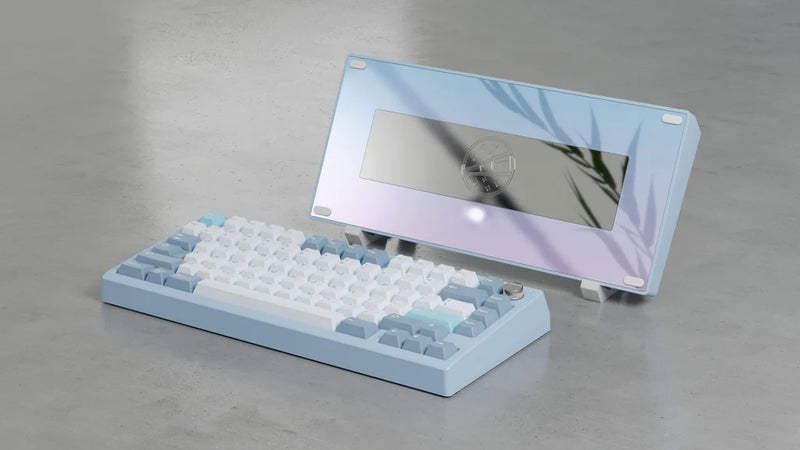

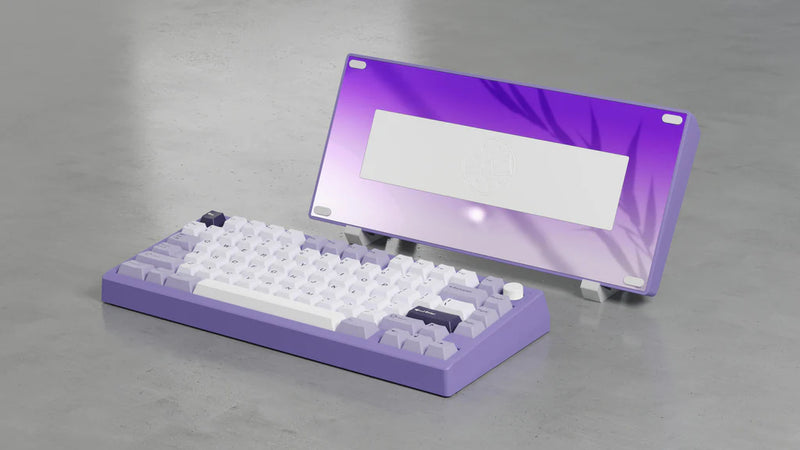

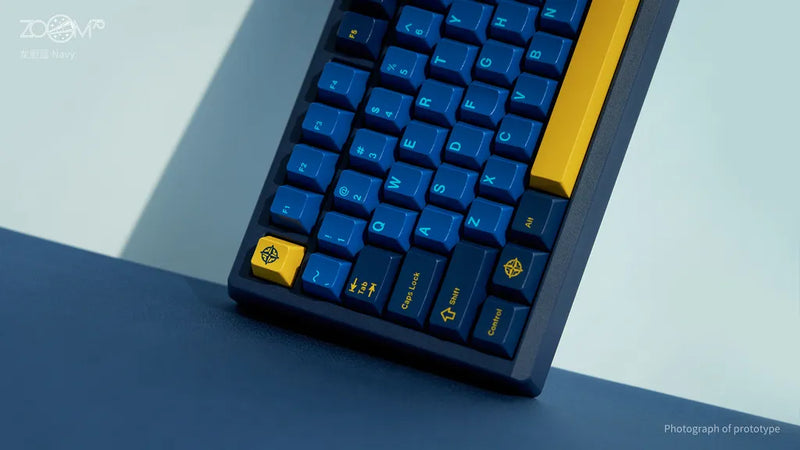

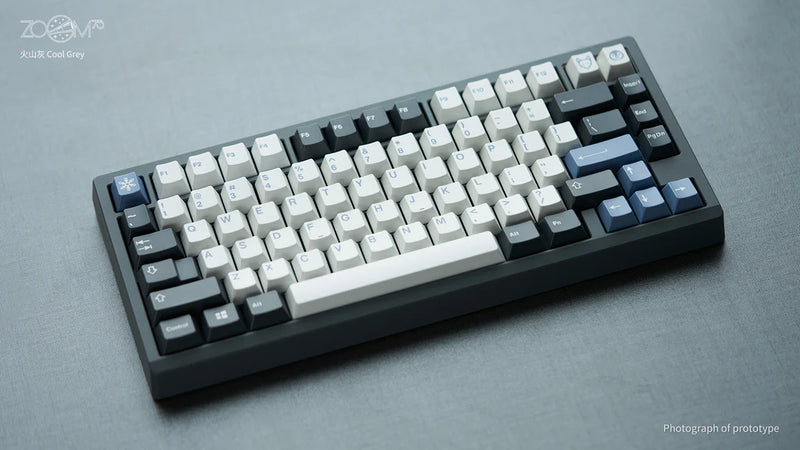

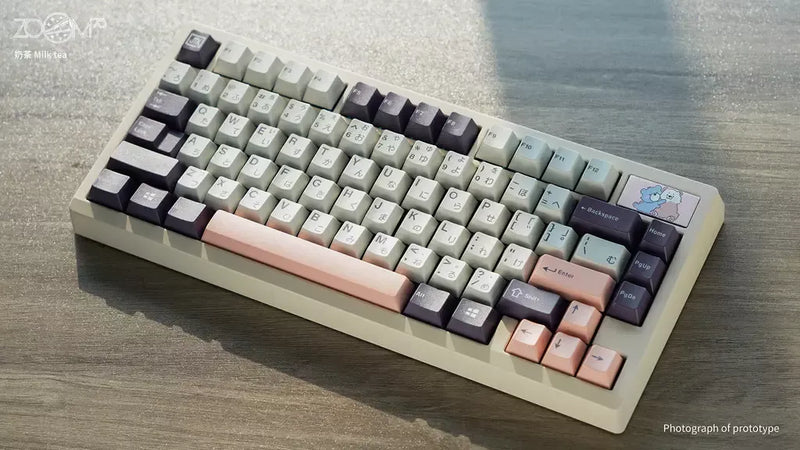

Meletrix Zoom75 Essential Edition Extras

After the successes of the Zoom65, Zoom TKL, and Zoom65 V2, Meletrix is ready to introduce their take on the ever-so-popular 75% layout - introducing the Zoom75.

Other than the typical Zoom characteristics - providing great value for money and amazing color options for personalization, the Zoom75 introduces new features never seen before in previous Zoom products, while maintaining an extremely competitive price in an increasingly competitive landscape.

ADD-ONS available here (click)

Zoom75 Resources & Guide (click here)

Highlights include:

• For the first time in the Zoom lineup, the Zoom75 introduces a Tri-mode PCB, adding 2.4Ghz wireless functionality while maintaining VIA Compatibility (Battery Included)

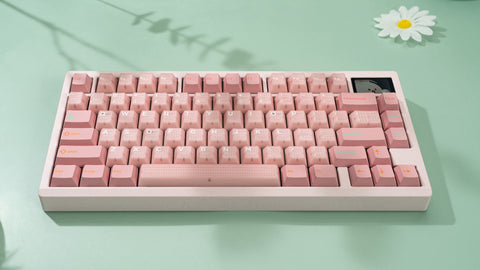

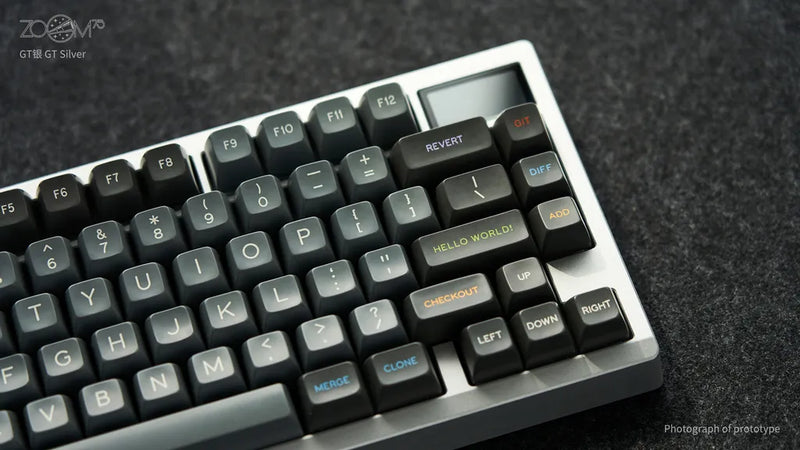

• Top-right 2U module with interchangeability between knob, extra keys, and even an LCD Screen! You can truly customize the Zoom75 to your own liking.

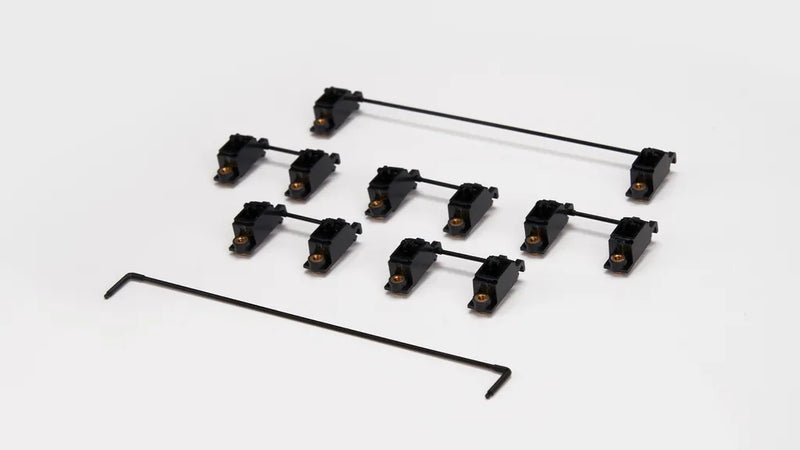

• WS Stabilizers V3 included, they use soft TPU around the wires to achieve better performance even with minimal lubing.
• Gasket Sleeve mounting system, making it easy to install without fiddling with sticky gaskets.

Specs:

• Gasket mount design
• 75% Layout
• PCB: 1.2mm thickness, with Ai03 Unified DB
• 5° Typing angle
• 22.14 mm front height

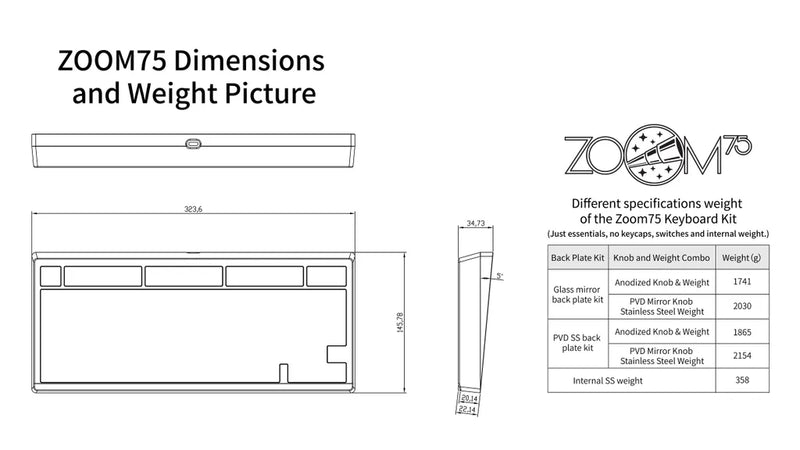

• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Finishing treatment: electrostatic coated, nano-coated（GT Silver only)
• Default plate: PC
• Zoom75 Bluetooth PCB polling rate: 125hz
• Zoom 75 2.4GHz Polling Rate: 1000hz
• Zoom 75 Wired Polling Rate: 1000hz
• Tri-mode PCB can be used in wired or wireless mode.
• Tri-mode PCB support VIA. Wired PCB support QMK, not VIA.
• Essential kit with Alu knob / weight / Glass Mirror Back Plate: 1.74 kg
• Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 2.03kg
• Essential kit with Alu knob / weight /PVD Back Plate: 1.87 kg
• Essential kit with brass knob / PVD SS weight / PVD Back Plate: 2.15 kg

NOTE: EACH BAREBONE KIT IS A FIXED CONFIGURATION, THIS KIT ONLY COMES WITH 2U LCD SCREEN KIT FOR EVERY PURCHASE.

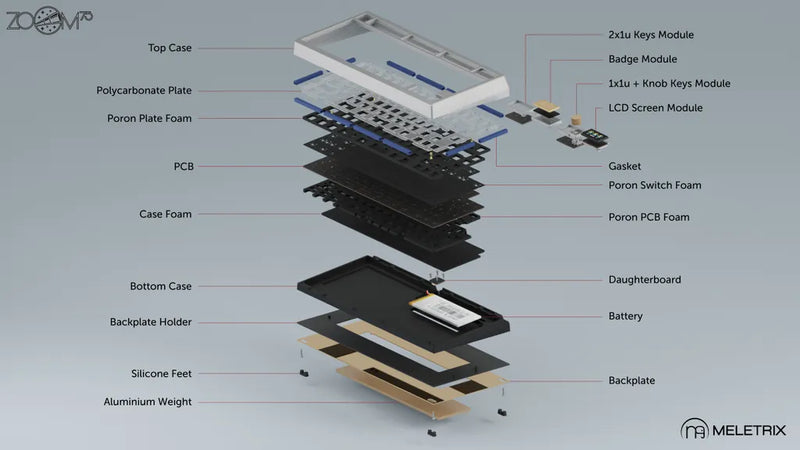

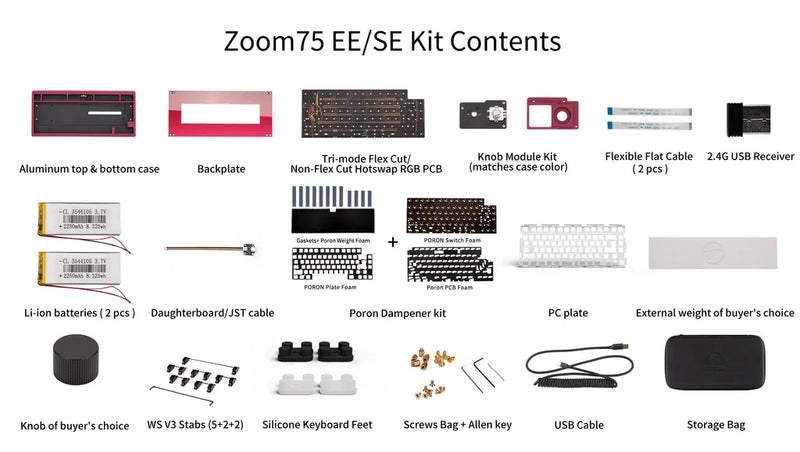

Package Contents:

• Aluminum top & bottom case.

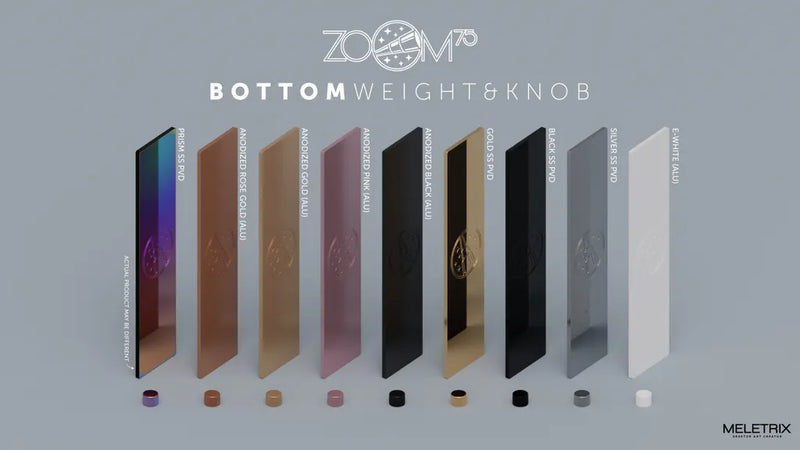

• Aluminum / SS external weight.
• Aluminum / brass rotary knob matching the external weight.

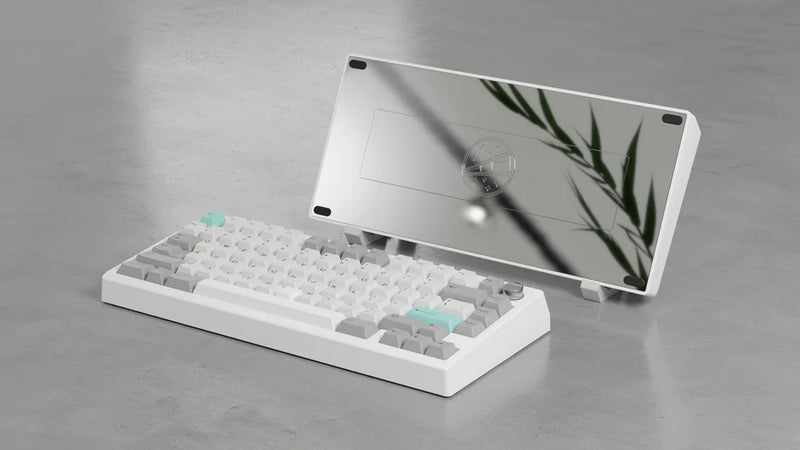

• Backplate of the same case color
• Knob Module Kit
• Tri-mode Flex Cut Hotswap RGB PCB
  Hot-swap, multi-layout Bluetooth /VIA PCB with per-key RGB
• Daughterboard/JST cable
• Flexible Flat Cable ( 2 pcs )
• Polycarbonate plate
• Gasket Sleeves
• Set of WS Stabilizers V3
• Li-ion battery
• Coiled USB-C cable
• Poron Dampener kit
• Silicone keyboard feet
• Screws and other installation tools and accessories
• 2.4G USB Receiver
• Storage case
• 2U Color LCD Kit
